Basic MV/LV Network Analysis

PowerFactory’s Load Flow analysis capabilities are enhanced by dedicated functionality for the assessment and planning of MV and LV distribution networks. This consists of calculations centred on network feeders, and related visualisation tools.

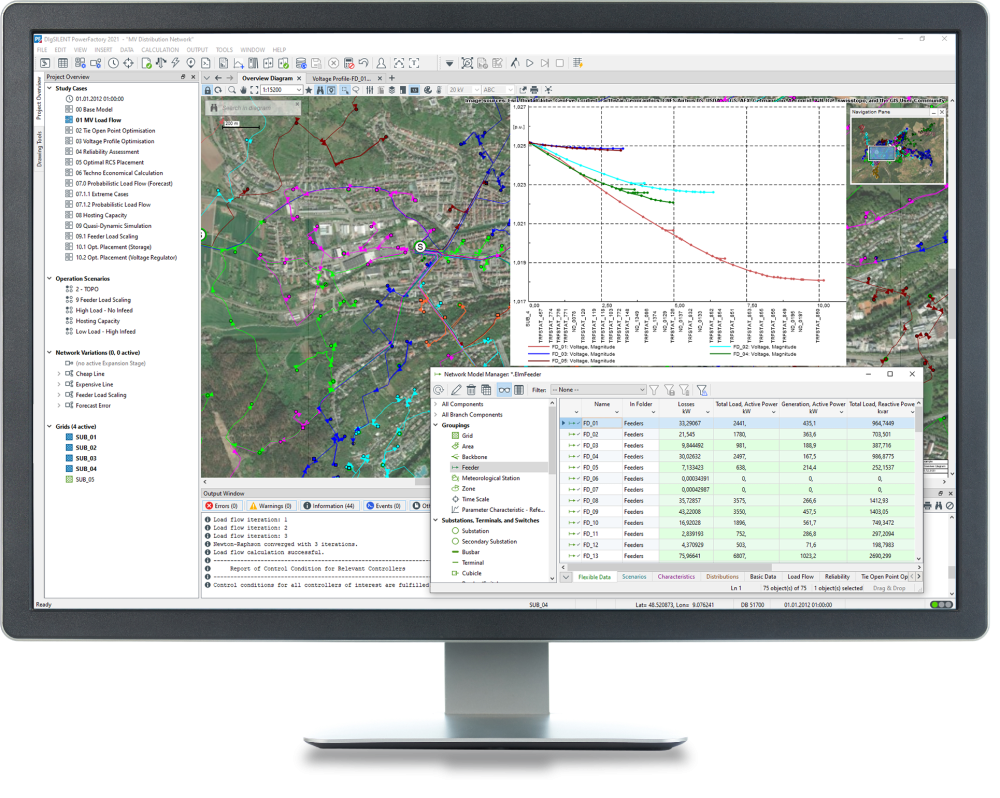

• Voltage profile plots for single and multiple feeders
• Feeder analysis tools, including feeder load scaling for simple and meshed feeders
• Automated schematic visualisation of feeder topology
• Radial feeder tools, including voltage and phase technology change tools
• Backbone calculation determining the main connections between meshed feeders
